Explainable ML: A peek into the black box through SHAP
With data becoming more widely available, there are more and more companies using powerful machine learning models to gain an edge over their competitors.
The insurance industry is no exception, and a good model can help give the insurer a competitive advantage in areas such as (but not limited to):
 Pricing accurately to reduce the risk of adverse selection
 Reserving models that allow for optimal use of assets
 Customer segmentation for campaigns to maximize cost and benefit
 Natural language processing (NLP) models for customer sentiment analysis
 Automated fraud detection for claims
 Underwriting automation for life insurance
 Customer service automation
While an actuary may not necessarily be involved in all the business areas listed above, they would often be exposed to at least one of them in their day job.
The biggest downside of using more complex machine learning models is losing the ability to easily interpret the results and the factors driving the predicted outcomes. They are often referred to as “black box” models for this reason. While the police department in the Minority Report certainly did not think twice about understanding their predictions before launching a fullon manhunt after their own unit head (played by Tom Cruise), it is highly unlikely that upper management and other stakeholders will have such blind trust in a new model without understanding how the finding was made.
Techniques such as GLMs and GAMs offer better model transparency, but can struggle when attempting to detect more complex shapes and interactions in the underlying data.
Thankfully, there are some tools and techniques (called explanation models) available that can help unpack a prediction from a powerful black box model. This means they can be used to answer questions such as:
 Drivers of unexpectedly low/high price of a policy to external stakeholders
 Providing evidence to regulators that underwriting decisions are data driven
 Providing the key indicators causing a claim was deemed to be fraudulent
 Reasons a particular customer profile is preferable for a targeted campaign
 Checking and debugging the model to make sure that the driving factors of a certain prediction are in line with expectations
This article will provide a gentle, handson, introduction to SHAP (short for SHapley Additive exPlanations), one popular explanation model. It was introduced as a unified approach to model interpretation and is currently the only explanation model that relies on solid and well understood economic theory instead of heuristic methods, which other popular methods (like LIME) are based on.
While this article will not provide a universal solution for the actuary to start using these black box models imprudently, it aims to encourage the exploration of these powerful black box models and give the reader a starting point for its interpretation.
Run this from the browser
Although this article will make use of the Python implementation, there is also a R wrapper for the SHAP package called shapper, and ml3, which works with the DALEX framework. For more information on how to get started with DALEX, check out Jacky Poon’s top 10 R packages for data analysis.
The python code shown this snippet can be run from the browser through this link.
Note that some loading time is to be expected, particularly when performing grid search and crossvalidation for the machine learning models. However, the binder does not require the reader to download the dataset, or any other dependencies to run the models. Furthermore, the reader is encouraged to play around with the code and look at how SHAP explains the different predictions, as well as explore the other graphs that the SHAP package has to offer.
Tools and Packages
The example uses Python3 and the main packages that we will be using are listed below:
 Shap
 Matplotlib
 Pandas and Numpy for general data manipulation
 Scikit learn’s pipeline framework and machine learning algorithms
Note that the sklearn pipeline is the main backbone of the process here out of convenience but any other workflow/ preprocessing framework would work just as well.
In [1]:

import pandas as pd import matplotlib.pyplot as plt import numpy as np import shap import warnings from IPython.display import Image from IPython.core.display import HTML from sklearn.preprocessing import OneHotEncoder from sklearn.compose import ColumnTransformer from sklearn.pipeline import Pipeline from sklearn.model_selection import train_test_split, GridSearchCV from sklearn.metrics import mean_squared_error from sklearn.ensemble import GradientBoostingRegressor warnings.filterwarnings('ignore') plt.ioff()
Importing, Preprocessing, Modelling
The dataset used in this article focuses on predicting claim cost from a set of policy characteristics. The included policyholder is:
 Age: Policyholder age (integer)
 Sex: Gender of the policyholder (string)
 BMI: Body mass index (float)
 Children: Number of children/ dependents of policyholder (integer)
 Smoker: Smoking state of policyholder (string)
 Region: Residential area of the policyholder in the US (string)
There is also a claims cost response column. The data can be downloaded from the Github repository here.
Note that although all the usual steps in the modelling process are involved here, this article will mainly focus on using the SHAP package and interpreting the model predictions. With that in mind, the rest of this section will not be discussed in detail, but includes:
 Importing the data
 Splitting the dataset into training and testing sets
 Creating a “preprocessor” step to onehotencode categorical features
 Building a sklearn pipeline with the preprocessing step and a gradient boosted machine (GBM) regression model
 Performing grid search and crossvalidation for the GBM model to get the “best” set of hyperparameters
 Two very brief/highlevel checks to ensure that:
 Model predictions approximate the actual values
 The model has not overfitted on the training set
Importing
In [2]:

# Import data from GitHub repository df = pd.read_csv("https://raw.githubusercontent.com/sharmaroshan/InsuranceClaimPrediction/master/insurance.csv") # Get column names for independent and response variables rating_factors_col = list(df.columns[:1]) claims_col = df.columns[1]
In [3]:

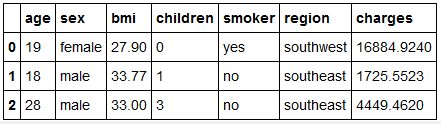

df.head(3)
Out [3]:
In [4]:

# Splitting up the categorical columns and numerical columns # This is to differentiate the preprocessing functions applied later in the pipeline num_features = list(df[rating_factors_col].select_dtypes(include=["int64", "float64"]).columns) cat_features = [col for col in rating_factors_col if col not in num_features]
Preprocessing
In [5]:

# Split our dataset into training and testing sets X_train, X_test, y_train, y_test = train_test_split( df[rating_factors_col], df[claims_col], test_size=0.2, random_state=123 )
In [6]:

# Create a preprocessor step # This ignores numerical columns but applies OHE to categorical features preprocessor = ColumnTransformer( transformers = [ ("numerical", "passthrough", num_features), ("categorical", OneHotEncoder(sparse=False, handle_unknown="ignore"), cat_features) ] )
In [7]:

# Some wrangling done to get OHE feature names # Note that preprocess.get_feature_names() can be used as well but by default produces x prefix which I did not want ohe_categories = preprocessor.fit(X_train).named_transformers_["categorical"].categories_ ohe_categories_concat = [f"{col}__{val}" for col, vals in zip(cat_features, ohe_categories) for val in vals] rating_factors_encoded = num_features + ohe_categories_concat
In [8]:

# Create a dictionary of hyperparameters to be optimised # Create a sklearn Pipeline object which takes in the preprocessor step as well as a GBM object param_grid = { "model__learning_rate": [0.01, 0.1], "model__max_depth": [2, 3, 4], "model__min_samples_leaf": [1, 3, 5], "model__min_samples_split": [2, 4], "model__n_estimators": [100, 200] } gbm_model = Pipeline([("preprocessor", preprocessor), ("model", GradientBoostingRegressor())])
Modelling: Gradient Boosted Machine
In [9]:

# Instantiate a gridsearchcross validation object # This takes in our previously created gbm pipeline and grid of hyperparameters to be tested # Using a standard 5part CV split with MSE as a score as we are doing a regression exercise gs = GridSearchCV( gbm_model, param_grid=param_grid, n_jobs=1, cv=5, scoring="neg_mean_squared_error", verbose=0 )
In [10]:

# Run the gridsearch, set the hyperparameters to the set which gave us the lowest MSE # Fit the optimised model on our training data set and get test set predictions _gs = gs.fit(X_train, y_train) gbm_model.set_params(**gs.best_params_) gbm_model.fit(X_train, y_train) gbm_pred = gbm_model.predict(X_test)
Reasonableness Checks
In [11]:

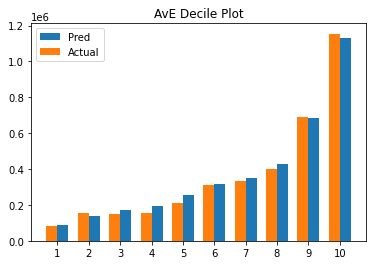

# Function created to create a multiple bar chart comparing actual vs predicted claims by deciles def plot_avepp(df, expected, actual): avepp = df.assign( model_bands=pd.qcut(df[expected], 10, labels=np.arange(10) + 1), ).groupby("model_bands")[[expected, actual]].agg("sum").reset_index() n = avepp["model_bands"].max() width = 0.35 ax = plt.subplot(111) pred_fig = ax.bar(np.arange(n) + width, avepp[expected], width) actual_fig = ax.bar(np.arange(n), avepp[actual], width) ax.set_title("AvE Decile Plot") ax.set_xticks(np.arange(n) + width / 2) ax.set_xticklabels(np.arange(n) + 1) ax.legend((pred_fig[0], actual_fig[0]), ("Pred", "Actual")) plt.show()
In [12]:

test_results = pd.concat( [ X_test.reset_index(), pd.DataFrame(gbm_pred, columns=["predicted"]), pd.DataFrame(y_test).reset_index(), ], axis=1 ).drop("index", axis=1) plot_avepp(test_results, "predicted", "charges")
In [28]:

# Checking RMSE for training and testing sets # An indication of overfitting would be a very low training RMSE with a high testing RMSE print("Overfitting Check") print("Testing RMSE: {}".format(mean_squared_error(y_test, gbm_pred, squared=False))) print("Training RMSE: {}".format(mean_squared_error(y_train, gbm_model.predict(X_train), squared=False)))
Model Validation
What is SHAP?
SHAP stands for SHapley Additive exPlanations and uses a game theory approach (Shapley Values) applied to machine learning to “fairly allocate contributions” to the model features for a given output. The underlying process of getting SHAP values for a particular feature f out of the set F can be summarized as follows:
 Get the Power Set of F, which contains combinations of features
 Run the model for all possible combinations, treating features outside of the subset as missing
 Record the marginal contributions to the model output for f
 Calculate a weighted sum of f marginal contributions to get the SHAP value of feature f for a given output. Or in other words, f ‘s expected contribution to the model output
Just from looking at the steps mentioned above, we can infer that this approach would have 2 major issues to solve:
 Statistical models typically are not able to handle missing values
 is exponential complexity , which is not feasible in most cases
Thankfully, there is a userfriendly API for us to define what “missing” means by creating background dataset that imputes the missing values while running our models. As for (2), SHAP values are generally approximated with sampling subsets of . However, in the case of treebased models and deep neural networks, there are elegant solutions implemented such that we can get exact solutions that run in polynomial time!
While the article will not delve into the details on how the SHAP algorithm handles these issues, there are various resources in the appendix with more detail.
SHAP package in Python
The SHAP python framework provides a variety of visualisations for model validation that can be found here. However, for the purposes of this article, the focus will be on the Waterfall, Force and Dependency plots to interpret model predictions.
We will also look at the results in the context of a particular observation with index equal to 30.
In [14]:

idx = 30 feature = "bmi" shap_df = pd.DataFrame(gbm_model.named_steps["preprocessor"].transform(X_train), columns=rating_factors_encoded)

Like the LIME package, SHAP works with explainer objects to calculate the results, and provides us with three main explainer categories:
 shap.TreeExplainer
 shap.DeepExplainer
 shap.KernelExplainer
The first two are model specific algorithms, which makes use of the model architecture for optimizations to compute exact SHAP values as mentioned above. The KernelExplainer on the other hand, is a model agnostic algorithm uses sampling to approximate SHAP values. Since a GBM regressor is the model of choice, the TreeExplainer object is used for explanations in the following sections.
In [15]:

gbm_explainer = shap.TreeExplainer(gbm_model.named_steps["model"]) gbm_shap_values = gbm_explainer(shap_df) # This line below is a quick workaround to get pass an assert condition in the SHAP # plots.waterfall source code. Can be ignored gbm_shap_values.base_values = gbm_shap_values.base_values[:, 0]
Waterfall Plots (Local)

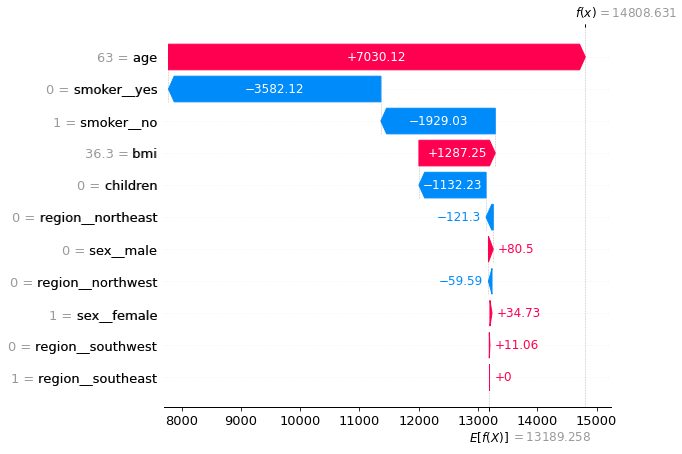

The SHAP waterfall plots aims to explain how individual claim predictions are derived.
 The Yaxis encodes features and reports the values observed for observation number 30
 The Xaxis encodes the range of our response (claims costs) in dollars
 The E[f(X)] = $13,189.258 at the bottom of the chart is the result from the null model, or the global average claims cost from our dataset
 The f(x) = $14,808.631 at the top of the chart is the model prediction for values observed in (1)
Each intermediate value shows the impact of that variable on the ultimate predication for that observation. The plot shows that this policyholder’s expected claims cost is about 13% higher than the average, and both the gender and region did not contribute materially to this outcome. While the higherthanaverage BMI did contribute to ~$1,300 more to the costs, this was mostly offset by the fact that she had no children.
The two main drivers mostly offset each other as well, but the fact that she is older outweighed the effect of being a nonsmoker by ~$1,400, which makes up the bulk of the net increase from the average.
In [16]:

shap.plots.waterfall(gbm_shap_values[idx], max_display=14, show=False) plt.show()
Force plots (“Global”)

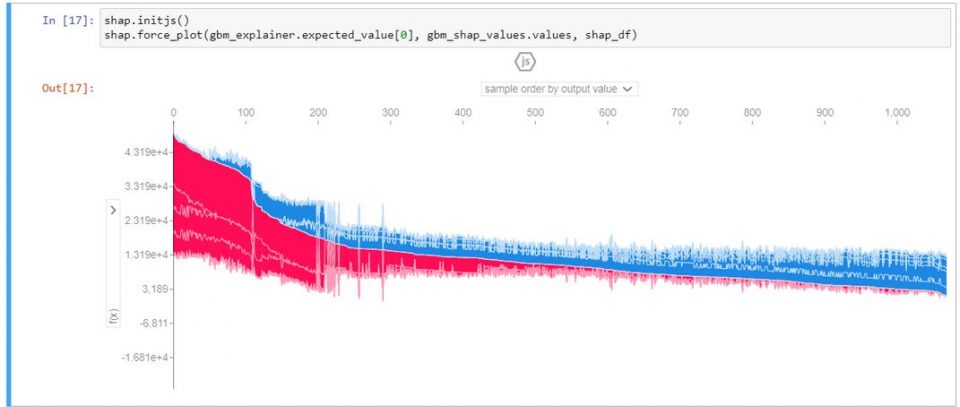

The force plots in the SHAP package can output both local and “global” interpretation graphs. While it does not provide a global explanation in the form of an equation like in our GLMs, it does give us a modellevel view of the results to work with. This is done by stacking and sorting all the SHAP values for all predictions into 1 plot as shown below.
While both axes can be customized from the combo box, by default, the Yaxis shows the output value of the model, while the Xaxis plots all the samples in the dataset sorted by similarity (sorting it by output value is easier to read). Hovering over an area of the graph, provides a quick summary of the significant rating factors that are driving the modelled costs up (in red) or down (in blue).
At a high level, the diagram shows that the model has put a lot of emphasis on the state of smoking and age, which is in line with high BMIs have an interaction effect with smoking, accounting for many of the higher claim predictions.
In [17]:

# Static image used for article in the event that init.js() is not handled as expected # Note that static image has Xaxis sorted by output value Image(url="img/shap_waterfall.png")
Out [17]:
In [18]:

shap.initjs() shap.force_plot(gbm_explainer.expected_value[0], gbm_shap_values.values, shap_df)
SHAP Dependency plots (“Global”)

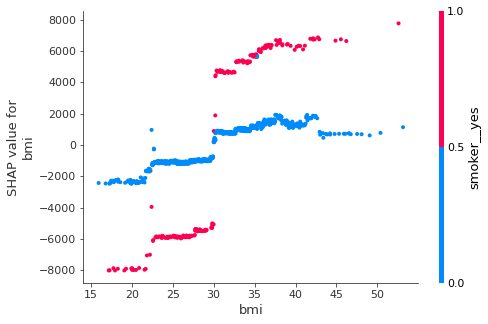

The SHAP dependency plot is a very simple graph that shows how the SHAP contributions differ for different values of the feature (BMI in this case). This is like a Partial Dependency Plot (PDP), which visualizes the marginal effect of a feature towards the model outcome by plotting out the average model predictions against different values of that feature. The SHAP dependency plots do not average the outcomes and show the variances on the yaxis. Here, there is a clear interaction effect between BMI values and the smoking state of the policyholder.
The blue data points (nonsmokers) show a more gradual slope for BMI contributions in contrast to the pink points (smokers), where the SHAP contributions jump significantly at the BMI=~30 point, which is in line with what we could guess from the previous force plot output above.
In [19]:

shap.dependence_plot(feature, gbm_shap_values.values, shap_df)
SHAP vs LIME?
We can compare the advantages and disadvantages of SHAP to another popular framework like LIME, which also utilizes the idea of an explanation model for local interpretation using some form of linear approximation. Some of the key advantages and disadvantages of SHAP are:
Advantages:
 SHAP provides a complete explanation between the global average and the model output for a particular explanation, whereas LIME’s model may not, depending on the fit of the localized linear regression.
 SHAP has the backing of a longstanding and well understood economic theory which guarantees that predictions are fairly distributed among the features whereas LIME does not guarantee this.
 SHAP results provide an (arguably) easy to read global and local view of the model predictions, whereas LIME only offers local interpretations.
Disadvantages:
 Only approximate SHAP values are feasible most of the time, the power set of models to compute exact solutions are very computationally expensive. Just imagine computing models on a smallsized dataset.
 SHAP does not generate sparse local explanations like LIME does (Models where only a small fraction of features are nonzero), which can be argued to be easier for people to understand and more actionable. The absence of any regularization is the reason SHAP is able to provide a complete explanation (Shapely values) of an observation.
 SHAP values can easily be misinterpreted. By removing the feature for a particular observation, we do not get an outcome of the prediction less the SHAP value of that feature. This also means that SHAP values cannot make predictions for changes in the input whereas results from LIME allows statements like: “If this policyholder’s BMI increased by 1, the modelled claims cost is expected to increase by ~$500.“
Afterward
As data becomes increasingly available and insurance products continue to get more complex, the use of more robust models to handles these interactions will be inevitable for many prediction tasks across the whole insurance value chain, not just for claims modelling and fraud detection.
Validation frameworks like SHAP and LIME seem to be a big step in the direction of modelagnosticadditive explanations. While the article provides a gentle and practical introduction to the idea and implementation behind SHAP, note that the theory and mathematics are a little more involved. For those who are interested in deep diving into the details, there are a few links below for further explanation. Andrew Ngai has also previously written an analytics snippet on SHAP, from the perspective of feature importance of using a housing prices data set, which the reader is recommended to check out as it covers some of the other visualisations available in the SHAP package.
 A Unified Approach to Interpreting Model Predictions
 Interpretable Machine Learning
 SHAP framework Github Repository
